  1. Wall Hooks

J Wall Hook Build Guide

A simple guide to hanging one of our J Hooks

PreviousPrism Wall Desk Bracket DimensionsNextSpecifications & Dimensions

Last updated 11 months ago

Was this helpful?

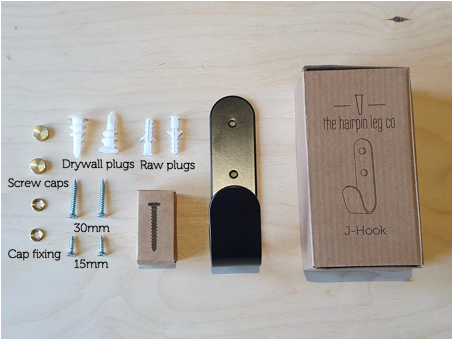

Our J hooks come with multiple fixing options for attaching to different materials. Every J hook pack contains:

How to attach the screw caps

When putting the hook up, place the threaded cap fixings between the hook and the screws before screwing in. The screw cap will then screw onto the cap fixing to cover the screw head.

Screwing into wood

You can screw the J hook directly into wood using the screws, no guide holes necessary.

The 15mm screws will allow you to screw into wood as thin as 11mm (eg cupboard doors)

If screwing into wood over 30mm thick, use the 30mm screws to give a more secure hold.

Screwing into drywall or plasterboard

Screw the drywall plugs into the wall. This can be done directly, with a screwdriver and without a guide hole. Then use the 30mm screws to screw the hook into the plugs.

Screwing into concrete / brick

Drill a 6mm hole in the wall and insert the raw plug, knocking gently with a hammer to ensure it is all the way in. Then use the 30mm screws to screw the hook into the plugs.
