# Box Section Leg Dimensions - Table & Bench

## Detailed Base Plate Dimensions

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2F4ogyMGMi6tG1dQTHBrX8%2Fimage.png?alt=media&#x26;token=0f9c8d3d-8aa1-47ed-bb73-302453897bd9" alt=""><figcaption><p>Table Height Base Plate Dimensions</p></figcaption></figure>

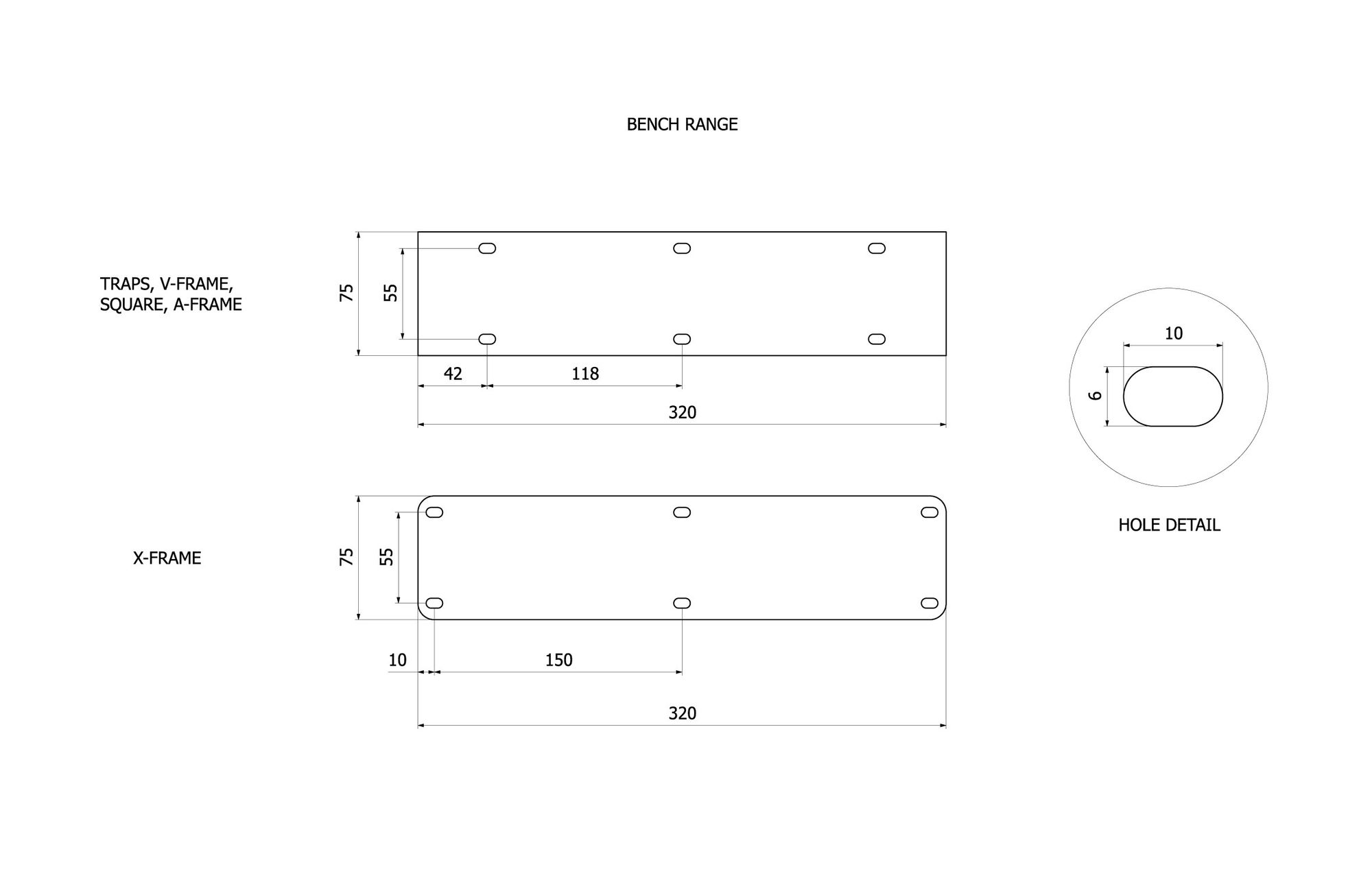

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FgBM3o87YufqXkpQFSsGS%2Fimage.png?alt=media&#x26;token=6f11ad0f-a93f-429e-a0a2-f93b9206a5f7" alt=""><figcaption><p>Bench Height Base Plate Dimensions</p></figcaption></figure>

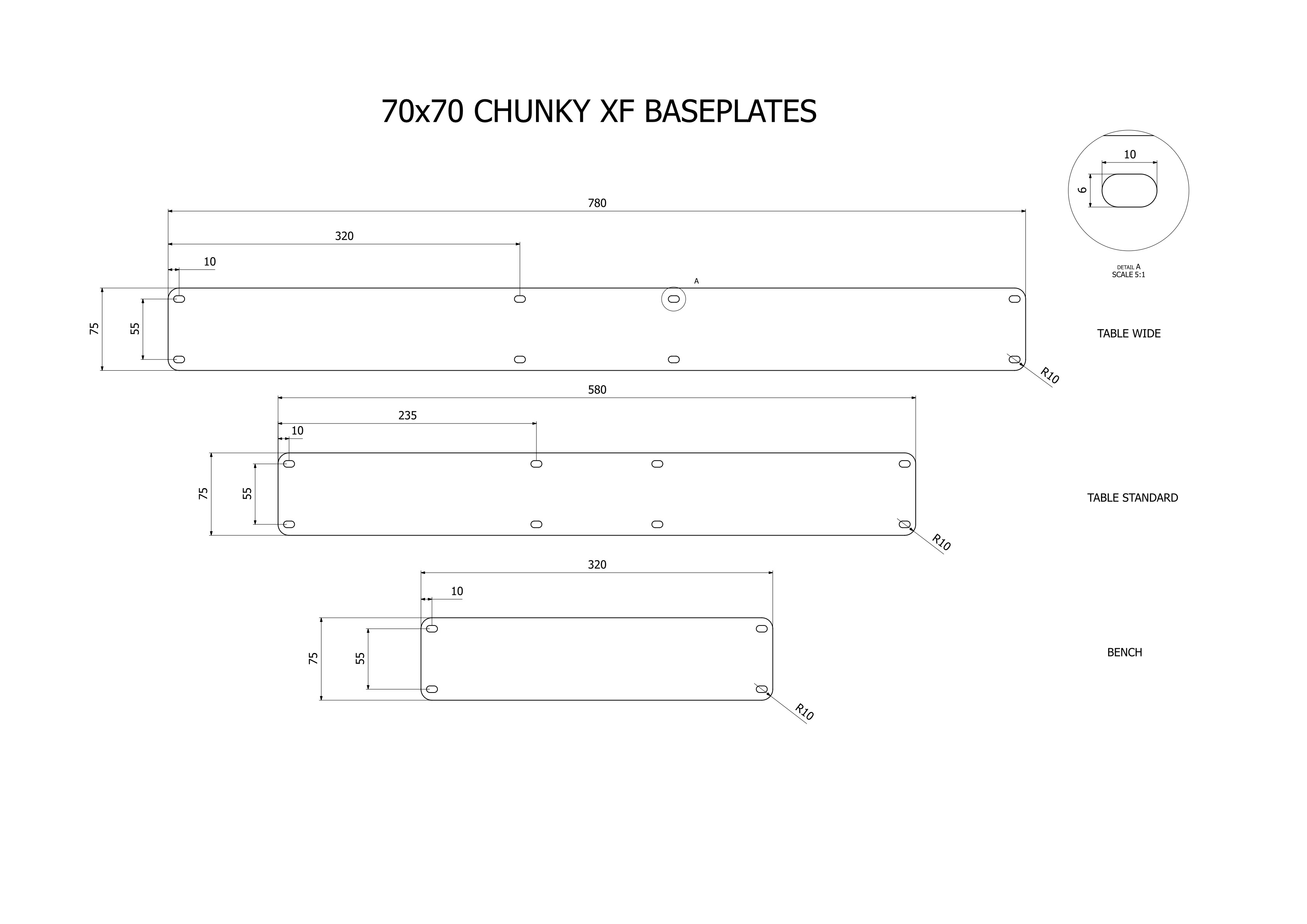

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FB7gIiDmfoAUHeWTxY4h2%2FALL%20XF%2070x70%20BASEPLATES.jpg?alt=media&#x26;token=1e3734a1-176e-4a09-823f-7b51d55b1605" alt=""><figcaption></figcaption></figure>

## General Dimensions

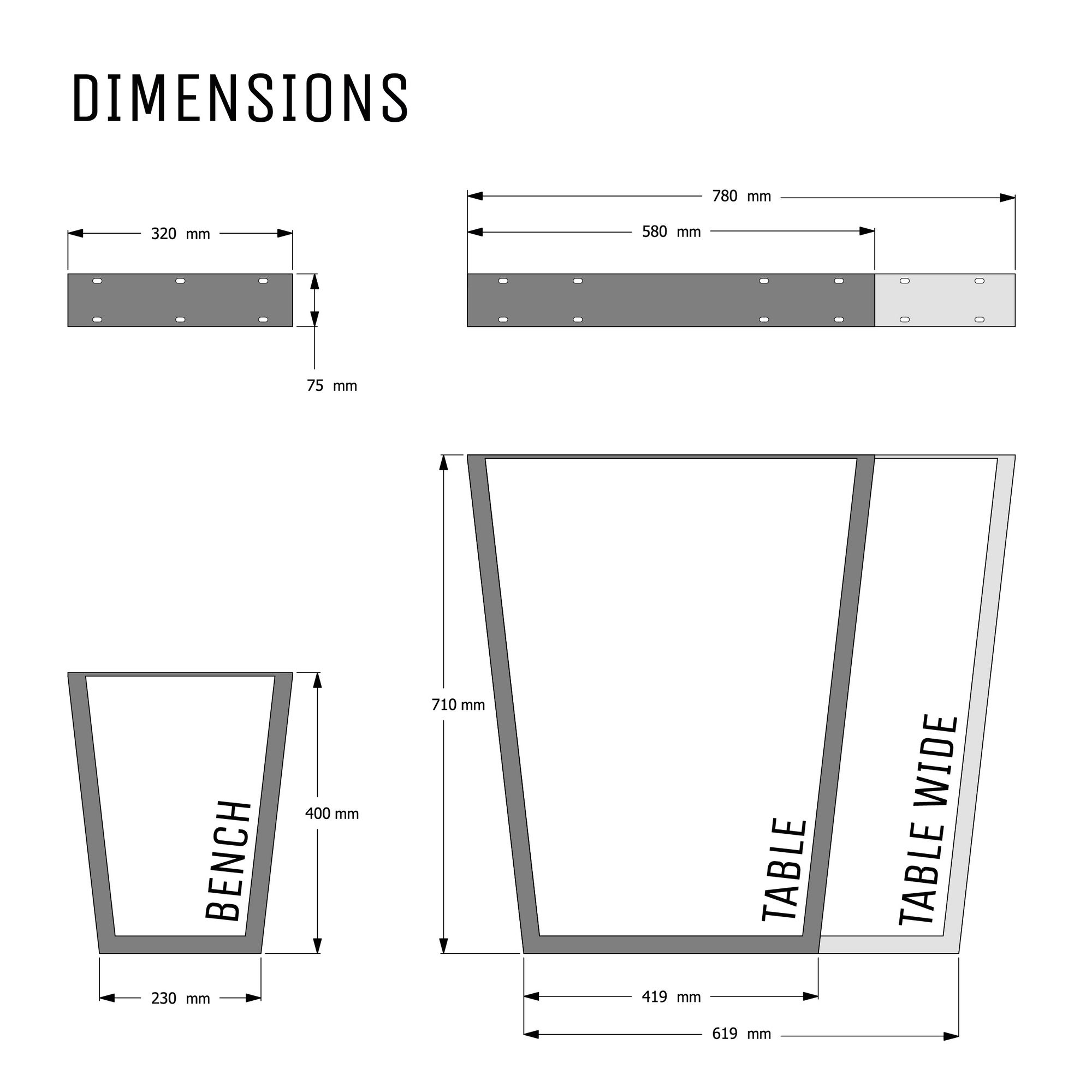

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2F1khkAj90iYd4pSutkaWb%2Fimage.png?alt=media&#x26;token=a729a7f8-b79f-4368-80d0-a101e912e4c8" alt=""><figcaption><p>V-Frame General Dimensions</p></figcaption></figure>

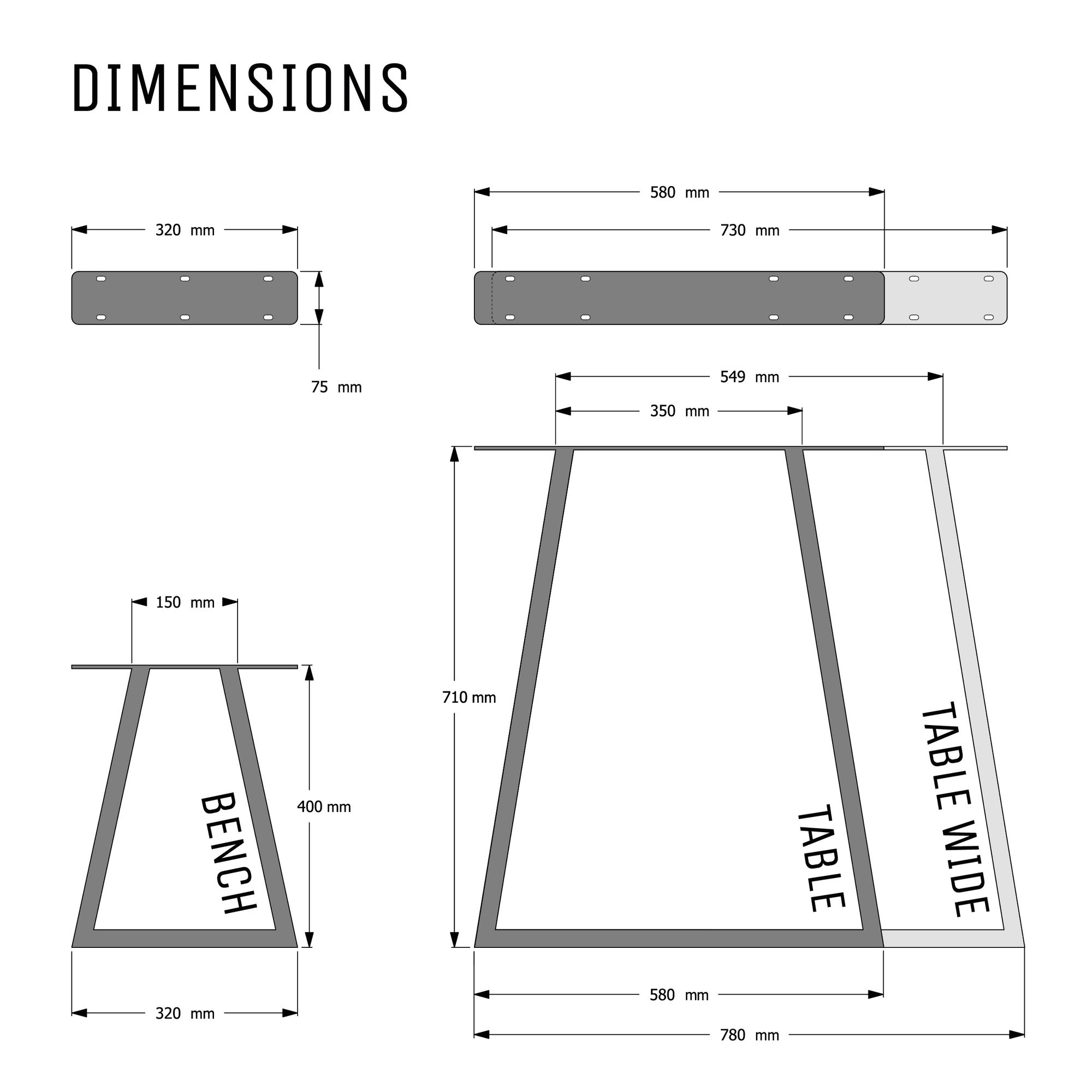

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FMP8MvPjYEOjpNvDcDlhb%2Fimage.png?alt=media&#x26;token=a2149905-f5a3-4f72-86b5-fee50b448613" alt=""><figcaption><p>Trapezium General Dimensions</p></figcaption></figure>

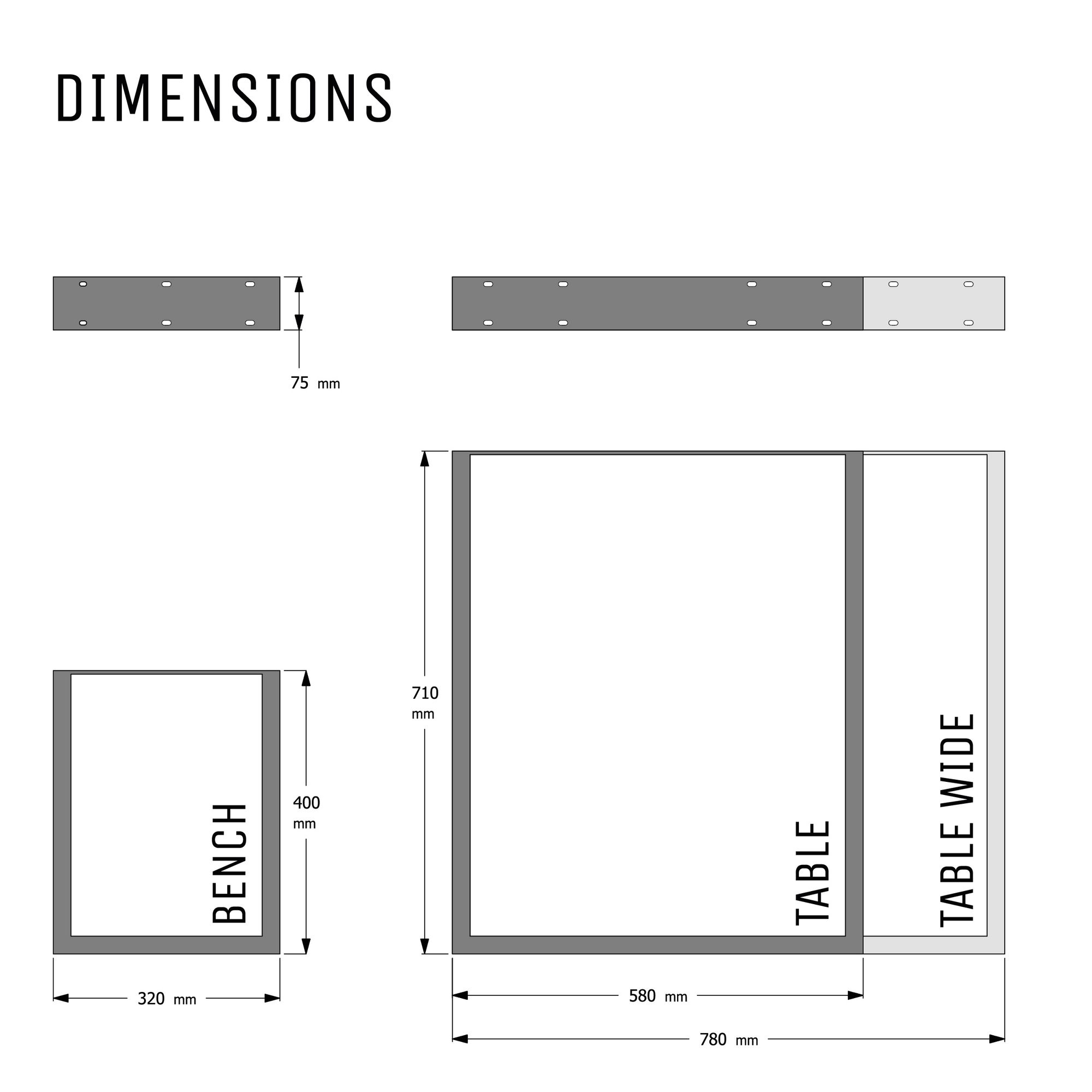

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FB0YeimtgHBr7CIlzzCqR%2Fimage.png?alt=media&#x26;token=38fcb6c1-c3fb-4bca-bf61-aa2e2d2cc917" alt=""><figcaption><p>Square General Dimensions</p></figcaption></figure>

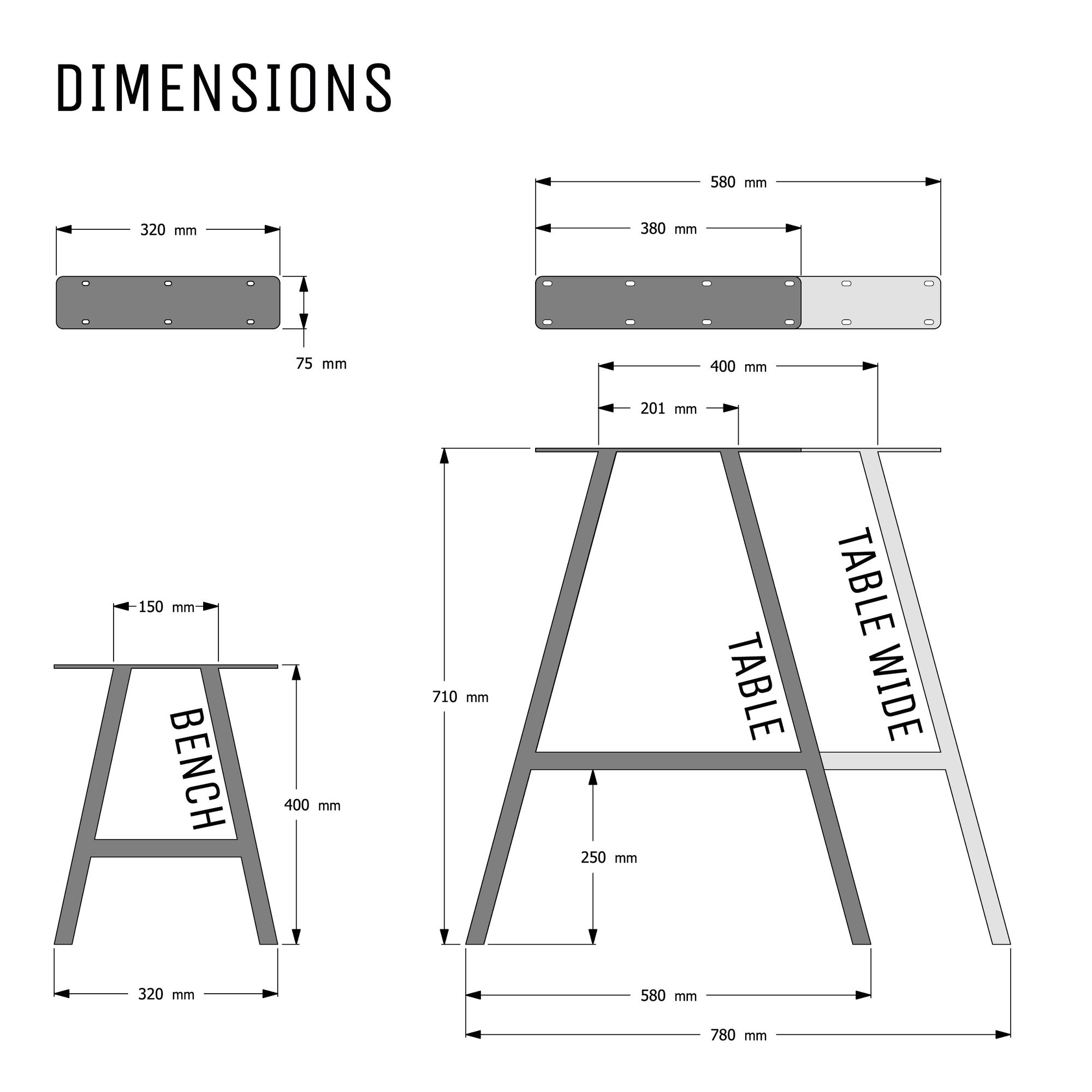

<figure><img src="https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FEhbab8hCWBB9ZCLEIVvH%2Fimage.png?alt=media&#x26;token=2b8c86f2-0ac1-4394-9fa5-f10c1032acd3" alt=""><figcaption><p>A-Frame General Dimensions</p></figcaption></figure>

### DXF Files - Mounting Plates

#### Bench

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2Far9v2do5Bn7Kgjm7AfiR%2FAF-TP_BENCH_BASEPLATE_REV05.dxf?alt=media&token=dfadb5f8-3325-4c5a-bb6e-97a357950693>" %}
A-Frame, Trap Bench
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2Fh0Ko8f7ksms4LdtLJhtN%2FSQ-VF_BENCH_BASEPLATE_REV05.dxf?alt=media&token=8057b3f5-c6dc-4352-b45c-e4660330c042>" %}
Square, V-Frame Bench
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2Fgj35GUvYazasH8D4ILO1%2FXF_BENCH_BASEPLATE_REV05.dxf?alt=media&token=94f120e7-2dfa-47a1-8ad5-7e82d03a04e2>" %}
X-Frame Bench
{% endfile %}

#### Table

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2F75ZBvjVKAzN9HsIYRbeX%2FAF_BASEPLATE_580_REV05.dxf?alt=media&token=6a54cc81-838e-45a2-a69b-e24933caaa7c>" %}
A-Frame Table
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FBDLx5fdP2D393iCdjf9V%2FSQ-VF_BASEPLATE_580_REV05.dxf?alt=media&token=8342a8e0-fd23-488f-bf25-87d7dad380e2>" %}
Square, V-Frame Table
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2Fi0Z4ttw93fOHMXC4cOMb%2FTP_BASEPLATE_580_REV05.dxf?alt=media&token=6512cbb0-e1dd-4978-b11f-1dc0948d9d85>" %}
Trap Table
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FVZNp8VpqItAOxwcIRgGf%2FXF_BASEPLATE_580_REV05.dxf?alt=media&token=c990c0e7-d09b-4922-81b0-e75d44b31fb0>" %}
X-Frame Table
{% endfile %}

#### Table Wide

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FiMpDo7Om28onytJrETJK%2FAF_WIDE_BASEPLATE_780_REV05.dxf?alt=media&token=b0a8543e-5c41-48cb-91d2-90bc8ade2acd>" %}
A-Frame Table Wide
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FteVF20lDmEdLcky8uuWp%2FSQ-VF_WIDE_BASEPLATE_780_REV05.dxf?alt=media&token=cc126e63-6499-464b-86ee-5a9153369df6>" %}
Square, V-Frame Table Wide
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FFmYGMxs2Mio4CfSrImd3%2FTP_WIDE_BASEPLATE_780_REV05.dxf?alt=media&token=89a5dba3-be2a-45eb-85f3-fbacf88183d9>" %}
Trap Table Wide
{% endfile %}

{% file src="<https://3575713408-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F0E3YE8HmSLcdH1jEgjES%2Fuploads%2FQzayE1Y9YCQEeN4HhLFz%2FXF_WIDE_BASEPLATE_780_REV05.dxf?alt=media&token=59d361ba-b7a6-425f-b919-a43f13d6b0c6>" %}
X-Frame Table Wide
{% endfile %}
